Tone Up Volume 250kOhm P taper with adjustable treble bleed circuit for guitar

Tone Up Volume 250kOhm P taper with adjustable capacitors and variable treble bleed circuit for guitar

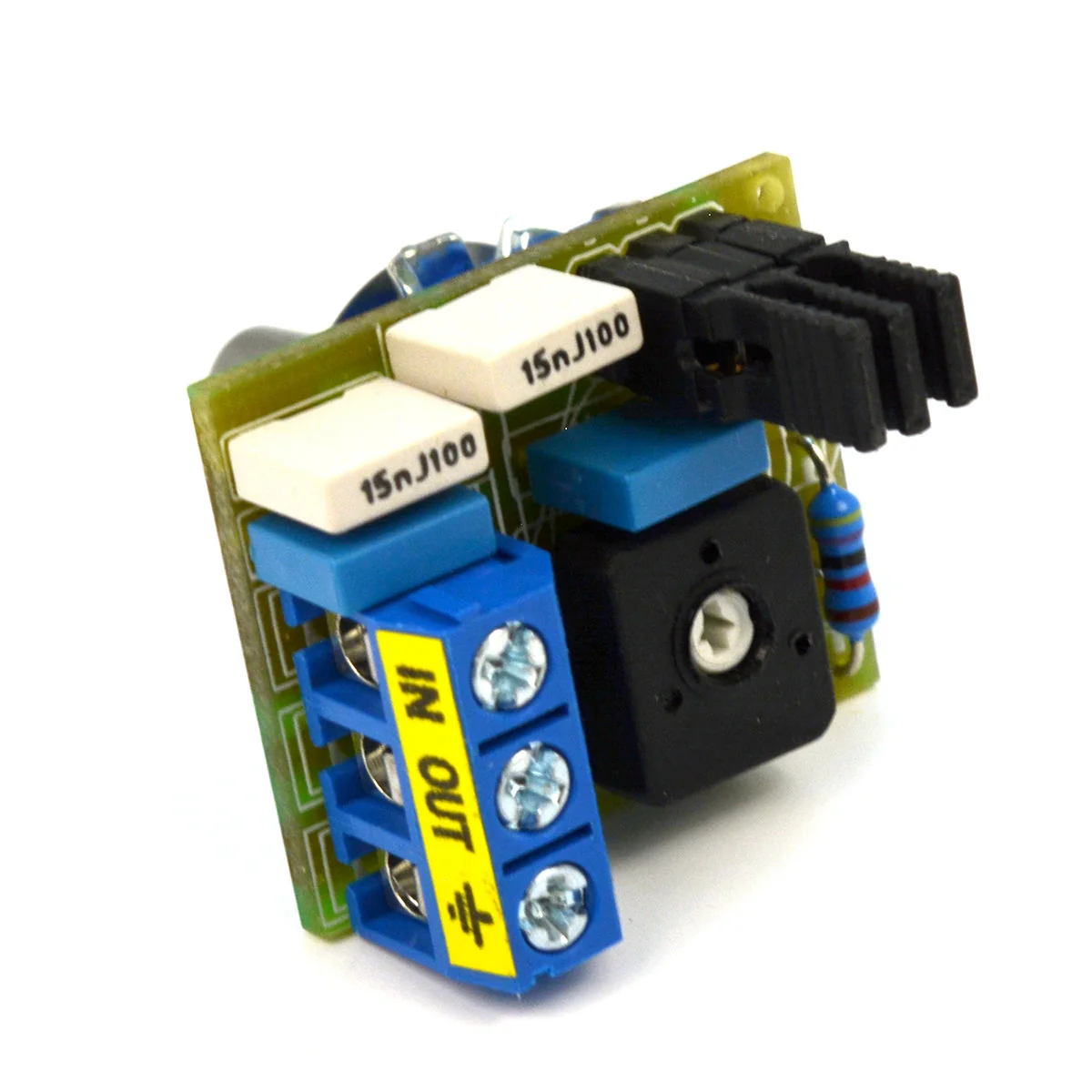

• V-TBA – is a 250KΩ volume potentiometer with a special P taper characteristic enlarging the effective zone of a rotation when volume adjusting.
• The extra feature of this potentiometer is an adjustable parallel treble bleed circuit.
• 3 jumper switches in OFF position meaning there is just a basic capacitor acting on treble bleed control.
• 3 jumper switches are ON resulting in the maximum capacitance acting in the parallel treble bleed circuit.
• Trimmer potentiometer – adjustable with a simple screw-driver, effects on a resistance value of the treble bleed circuit.
• The combination of jumper switches and setting of the trimmer offers almost infinite values of treble bleed impact on the volume control.
